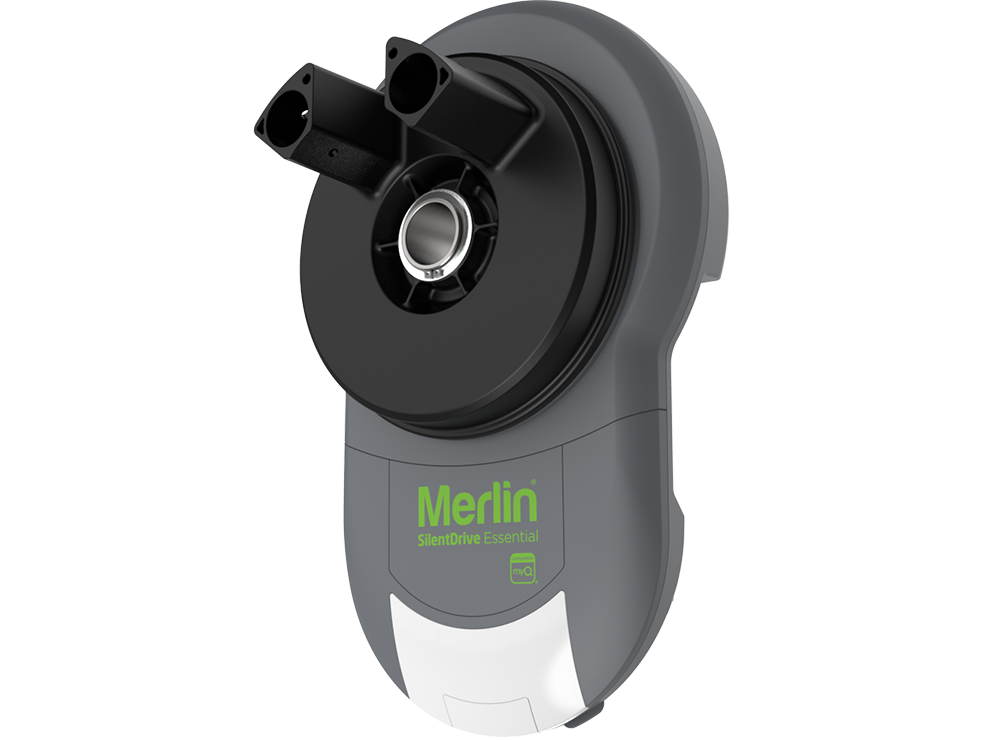

SilentDrive Essential

The NEW SilentDrive Essential is myQ compatible, with bright LED lighting, quiet operation and includes 2 x premium hand held remotes.

Visit Go Merlin Website

SKU: MR655MYQ Category:

Description

General

  • 24 DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Drum rotations: 4.5
  • Max Door weight: up to 100kg
  • Max peak pulling force: 500N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Noise rating: 1M 57DB

Door Specs

  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors

Door Opening and Closing Times

  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.4m high door

Door Height

  • Door height: 4.5m, 3.0m
  • Door width: 3.6m, 5.4m
  • Single dwelling

* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition.
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.
